BLOOD BAG TUBE SEALER

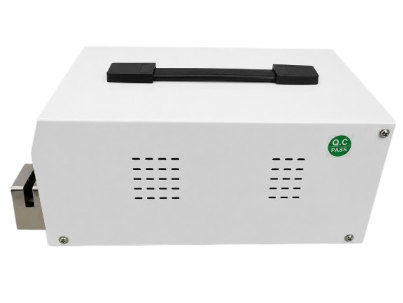

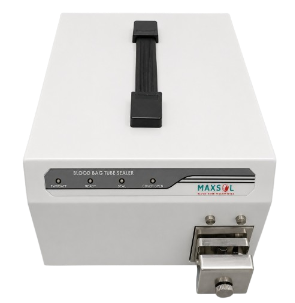

Maxsol Blood Bag Tube Sealer

The Maxsol Blood Bag Tube Sealer is a heavy-duty, microprocessor-controlled device designed for fast, reliable, and precise sealing of blood bag tubes using advanced Radio Frequency (RF) dielectric heating technology.
Engineered for bench-top operation, this next-generation sealer ensures smooth, uniform, and hemolysis-free seals in less than three seconds — making it a trusted solution for hospitals, blood banks, and research laboratories.
The unit is available in both battery and non-battery variants, offering flexibility for stationary and mobile use. Compact, lightweight, and durable, the Maxsol Tube Sealer enhances workflow efficiency while maintaining the highest safety and performance standards.

Key Features:

  • Bench-Top Design: Compact and user-friendly, ideal for laboratory and blood bank workstations.

  • RF Dielectric Heating (40.63 MHz): Delivers consistent, cell-safe sealing without damaging blood components.

  • Fast & Efficient: Produces clear, snap-apart seals in under 3 seconds, enhancing workflow efficiency.

  • Microprocessor-Based Control: Ensures precise monitoring and consistent sealing performance during every cycle.

  • Safety Features:

    • Anti-spark protection to prevent electrical hazards.

    • Overheat protection for both equipment and tubing.

    • Splash guard for operator safety.

  • Clear Visual Indicators:

    • Ready to Seal

    • Seal in Process

    • Power Supply

    • Cover Open Alert

  • Easy Maintenance: Removable sealing head cap allows for quick cleaning and servicing.

  • Tear-Line Seal: Creates a smooth, clear break line for easy tube separation after sealing.

  • Flexible Setup: Supports single-unit or cascaded bench-top configurations to fit diverse operational setups.

  • Extended Coaxial Cable: 1.5 – 2.0 meters long for convenient handling and flexibility during use.

Other Features:

  • RF-Based Operation: Uses radio frequency energy for tube sealing, preventing hemolysis and maintaining blood integrity.

  • Automatic Optical Sensing: Detects tube insertion and automatically initiates sealing, ensuring ease of use and operator safety.

  • Long Life Design: Built for a minimum 10-year lifespan with guaranteed availability of spare parts.

  • Regulatory Compliance: Fully WHO-GMP and CE Certified — meeting international safety and quality standards.

  • Fast Sealing Time: Delivers a complete seal within 1–2 seconds, with no warm-up time required.

  • Wide Compatibility: Suitable for tubes up to ≥6 mm diameter and 0.75 mm wall thickness, compatible with all major blood bag brands.

  • Uniform Sealing: Switch Mode Power Supply (SMPS) ensures stable and consistent performance even during voltage fluctuations.

  • Audible Alert (Optional): Provides a sound notification upon seal completion for user convenience.

  • Battery Backup:

    • Performs over 1000 seals per charge in continuous operation mode.

    • Runs for 10+ hours on battery, ideal for mobile blood donation drives.

  • Operator Safety: Fully enclosed electrical components prevent contamination and protect against blood splatter damage.

  • Rugged Performance: Designed for dependable operation under varying conditions:

    • Temperature Range: -10°C to +40°C

    • Relative Humidity: 15% to 90%

Why Choose Maxsol Blood Bag Tube Sealer ?

The Maxsol Blood Bag Tube Sealer represents the perfect balance between performance, durability, and donor safety.
Its fast operation, intelligent control, and robust build quality make it a dependable solution for busy blood banks and donation centers. Whether used in fixed labs or mobile collection units, it guarantees efficient, uniform, and contamination-free sealing every time
